Stainless Steel Wire Mesh Window Screen Mesh Window screen is also known as wire screen, insect screen or fly screen. It is used to keep leaves, debris, insects, birds and other animals from entering a building or a screened structure such as a porch, while permitting fresh air-flow. Therefore it is applied to filtration, windows for mosquitoes and flies, doors, etc.
Stainless steel insect mesh is the most durable of the materials available for insect mesh and has excellent resistance to corrosion. Stainless steel insect mesh keeps out flies, wasps, bees, mosquitoes and other insects, but not midges.
1.Window Screen Mesh Specification
Material |
Mesh per inch |
Wire Dia (mm) |
Wire Dia (inch) |
Open Area % |
AISI 316 or 304 |
10 x 10 |
0.9 |
0.035" |
41.7 |
AISI 316 or 304 |
10 x 10 |
1.2 |
0.028" |
27.8 |
AISI 316 or 304 |
10 x 10 |
0.8 |
0.032" |
46.9 |
AISI 316 or 304 |
10 x 10 |
1.15 |
0.045" |
29.9 |
AISI 316 or 304 |
11 x 11 |
0.8 |
0.032" |
42.5 |
AISI 316 or 304 |
11 x 11 |
0.7 |
0.027" |
48.3 |
AISI 316 or 304 |
12 x 12 |
0.7 |
0.027" |
44.8 |
AISI 316 or 304 |
12 x 12 |
0.58 |
0.023" |
52.8 |
Special mesh can be made according to customers requirement |

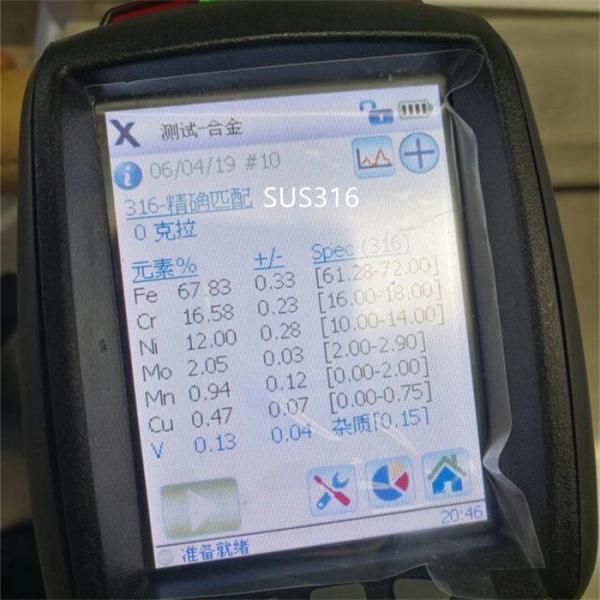

STAINLESS STEEL WIRE CHEMICAL COMPOSITION
STAINLESS STEEL WIRE MESH WEAVE TYPE
Plain weave: The most popular a kind of preparation method industrial production and civil life is widely used.
Twill weave: Mainly in the 150 mesh to 600 purpose of stainless steel wire mesh weaving use.
Dutch weave: In this method the stainless steel wire mesh weaving has good tensile strength,mainly used for liquid and slurry filter.
STAINLESS STEEL WIRE MESH DISPLAY
5-18mesh SS wire mesh show
used in general industrial use applications, like heavy duty particle separation, water filtration and food processing. Such as:mining, quarrying, security, and automotive to name a few.
20-60mesh SS wire mesh show
used in instances where air flow is needed. Other of these can be used in scientific applications. Non-industrial users also find some of these specifications suitable for various decorative and artistic applications.
80-500mesh SS wire mesh show
these specifications are reserved for high performance use in industries, like aerospace, science research and special technologies. available from stock in full 100 ft rolls. These rolls can be cut down to size.
Feature
1. long service life: good weather resistance, anti-aging, anti-cold, anti-inflammatory, anti-drying, anti-humidity, flame retardant, anti-moisture,
anti-static, good light transmission, no silk, no deformation, anti-UV, High tensile strength and long service life.
2. Wide application range, can be directly installed in the window frame, wood, steel, aluminum, plastic doors and windows can be assembled;
corrosion resistance, high strength, anti-aging, fire resistance, no need to paint coloring
3. Non-toxic and tasteless
4. With anti-static function, no ash, good ventilation
5. Good light transmission, with a true invisible effect
6. Automatic filter UV protection to protect the health of the family
7. Environment protectin
